PVC Foam Board Extrusion Machine

Pre World's high-quality PVC Foam Board Extrusion Machine has a wide range of applications, including producing boards for the furniture industry, advertising boards, cabinet boards, bathroom boards, foam wallboard substrates, and wood-plastic composite foam flooring substrates.

Equipment Components

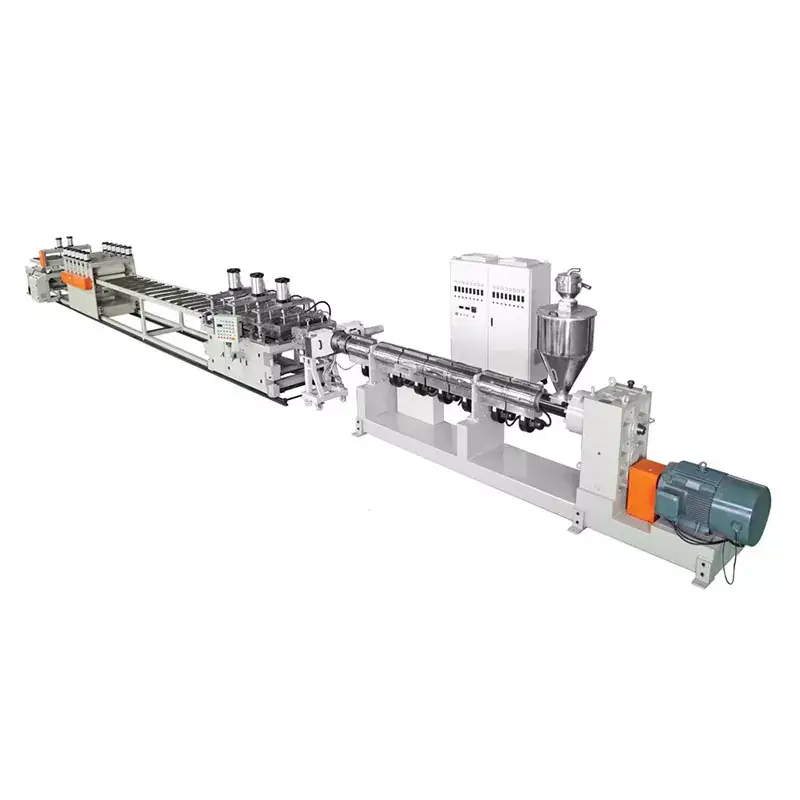

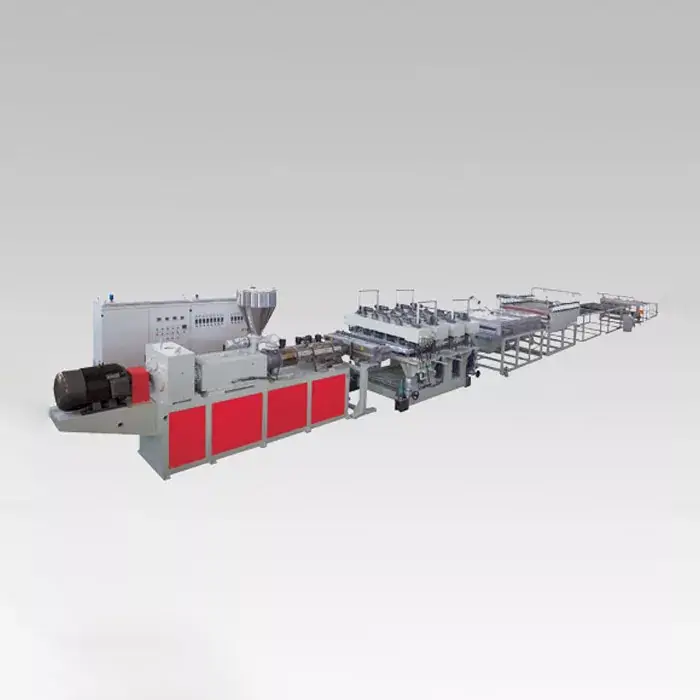

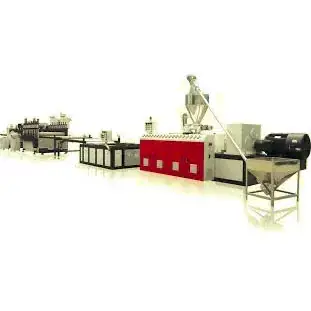

The PVC Foam Board Extrusion Machine is a continuous production system consisting of a twin-screw extruder, a vacuum shaping system, and a traction and cutting unit. The core system utilizes a special alloy screw and barrel combination, coupled with a multi-channel crusting die to achieve controlled micro-cellular foaming. During operation, the machine delivers uniform plasticization, excellent extrusion stability, high output, and a long service life. Our machine features high output, stable extrusion, high foaming, and a wear-resistant surface.

Production Process

1. Raw Material Pretreatment

PVC resin and activated calcium powder are mixed at high speed to form a homogeneous masterbatch. Additives are precisely metered using a loss-in-weight scale. The mixing temperature is strictly controlled below the activation threshold of the heat sensitizer.

2. Extrusion and Shaping Stage

The twin-stage screw achieves controlled plasticization and foaming separation, maintaining a constant die channel pressure. The vacuum adsorption system creates a slightly positive pressure crust layer, and the cooling water temperature is adjusted according to the board thickness gradient.

3. Finished Product Processing

An online thickness gauge provides real-time feedback to adjust the hauling speed, and the flying saw cutting system is equipped with a dust recovery device. Board edges are automatically ground and chamfered, and the stacking robot stacks according to a preset pattern.

Maintenance Precautions

1. The screw and barrel must be cleaned regularly to prevent material residue.

2. The vacuum shaping system must be kept unobstructed, and the hauling machine's clamping force must be adjusted appropriately.

3. The cutting machine's blades must be sharp to ensure a smooth cut.

4. The electrical control system should be kept dry and clean, and all lubrication points must be lubricated regularly.

5. During equipment operation, the motor load must be carefully monitored to detect any abnormalities.

Material Advantages

The PVC skinned foam board produced by the PVC Foam Board Extrusion Machine is also known as PVC Celuka board or PVC Skinning board. Its main raw materials are polyvinyl chloride, calcium carbonate, and other additives. The board surface can be printed in a variety of colors or laminated. This material offers sound insulation, heat insulation, moisture resistance, and flame retardancy. It is easy to transport and install, and can be processed like wood, such as nailing, drilling, planing, riveting, and gluing. This board is widely used in furniture manufacturing, cabinet production, and office decoration, and is an environmentally friendly building material.

Advantages of PVC Foam Board Compared to Traditional Wood

1. The PVC foam board produced by our PVC Foam Board Extrusion Machine is lighter and less expensive than traditional wood.

2. 2. PVC foam board offers corrosion resistance, moisture resistance, and flame retardancy, making it a suitable alternative to wood and aluminum.

3. It has a wide range of applications. In furniture manufacturing, it can be used to create cabinets, countertops, and other components; in architectural decoration, it can be used for interior partitions and wall linings; and in the advertising industry, it can be used to create products such as signage.
